The APM Power Module DC-DC with XT60 Plug Connectors is a compact and efficient power supply solution designed for APM (ArduPilot Mega) flight controllers and other UAV systems. It provides clean and regulated power to the flight controller and onboard electronics while also measuring voltage and current for telemetry data logging and monitoring.

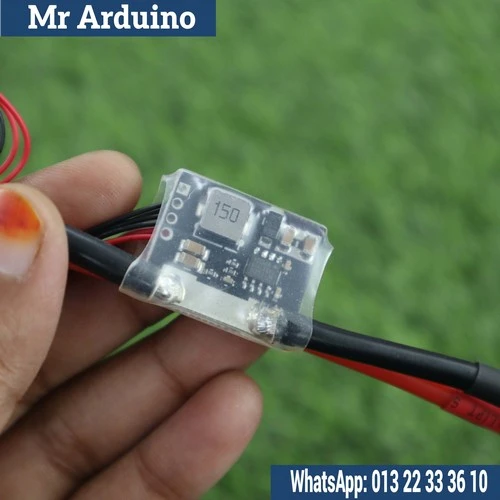

This module integrates a DC-DC switching regulator, offering stable 5.3V output to the APM board, and includes built-in XT60 connectors for easy integration with standard LiPo battery setups. The power module is essential for ensuring reliable power supply during flight and is commonly used in drones, RC planes, and robotics applications.

How it Works:

1. Power Supply Function: The module connects between the LiPo battery (typically 2S–6S) and the APM flight controller. It steps down the high voltage from the LiPo battery to a regulated 5.3V suitable for powering the flight controller and related peripherals.

2. Current & Voltage Sensing: The power module includes a current shunt resistor and voltage divider, which feed telemetry data back to the APM. This allows real-time monitoring of battery voltage and current consumption during operation.

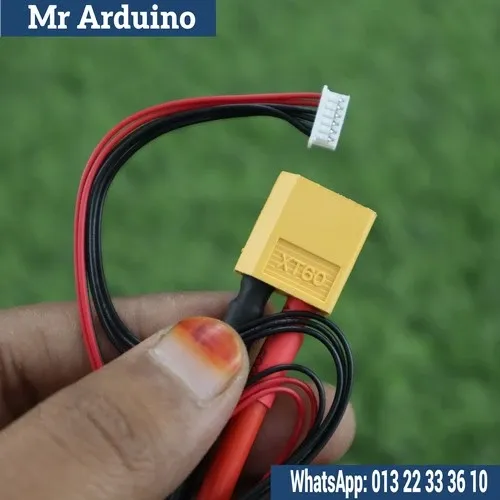

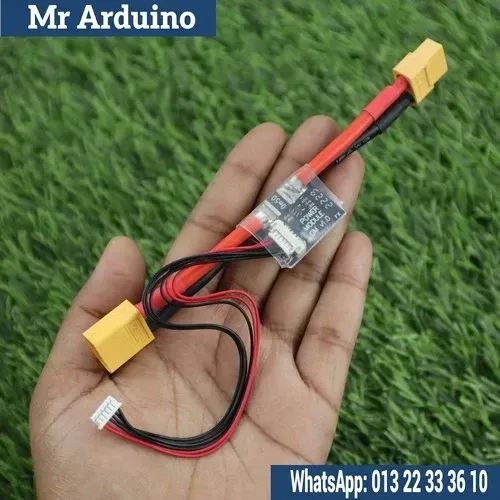

3. XT60 Plug Connectors: Equipped with XT60 input and output connectors for secure and high-current-capable connections, making it easy to integrate into existing drone or robotics power systems.

4. Safety Features: The module offers overcurrent protection, ensuring that your flight controller is safeguarded against power spikes or overloads.

Limitations / Constraints:

1. Not for High-Current Applications: The standard version of the APM power module is rated for up to 90A peak current but may only support around 60A continuous reliably. For high-performance setups, a higher-rated power module may be required.

2. No Redundant Power: It provides a single power output; if the module fails, there is no built-in redundancy, which could affect mission-critical operations unless supplemented by a backup BEC or power system.

3. Compatibility: This module is designed primarily for APM flight controllers. While it may work with Pixhawk and other systems, compatibility is not always guaranteed without proper wiring or firmware configuration.

4. Telemetry Cable Required: To utilize voltage and current monitoring features, the included 6-pin cable must be correctly connected to the flight controller’s power port.

5. Weather Sensitivity: Not waterproof—must be protected if used in environments with moisture or potential water exposure.
