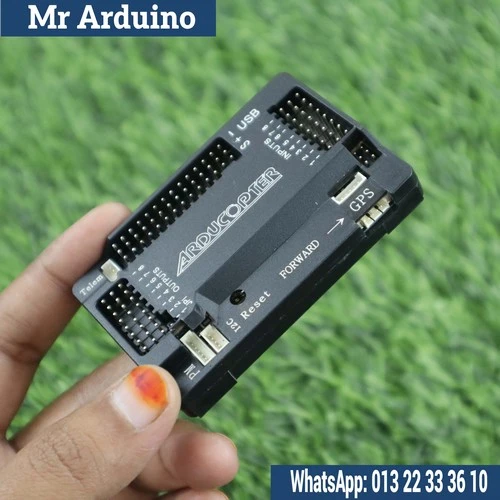

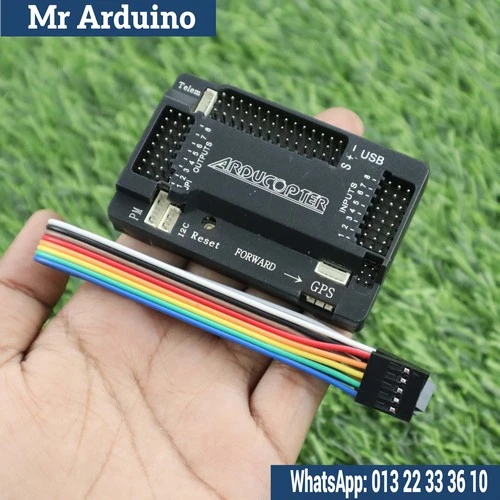

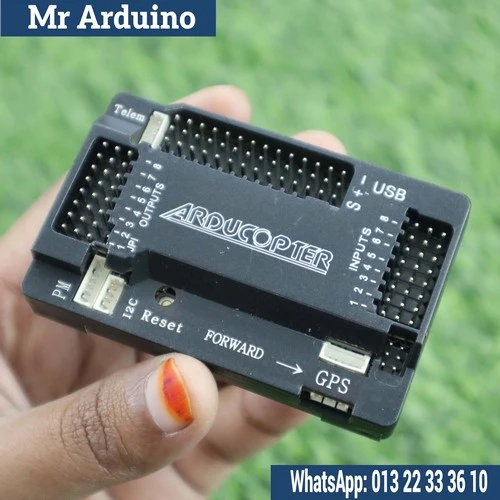

The APM 2.8 Flight Controller is a versatile and open-source autopilot system designed for multirotor drones, fixed-wing aircraft, and RC vehicles. Based on the ArduPilot firmware, the APM 2.8 offers professional-grade flight control features at an affordable price—perfect for hobbyists, drone builders, and robotics enthusiasts looking to create a highly stable and customizable flying platform.

Equipped with a built-in barometer, 3-axis gyroscope, accelerometer, magnetometer, and external compass module, the APM 2.8 enables precise navigation, position hold, waypoint missions, auto takeoff/landing, and much more. It supports both manual and autonomous flight modes, giving users full control over their drone’s behavior and path.

Key Features:

• Processor: Atmel ATmega2560 and ATmega32U2

• Sensors:

  • 3-axis gyroscope

  • 3-axis accelerometer

  • 3-axis magnetometer (external compass)

  • Barometric pressure sensor

• Onboard Data Logging: MicroSD card slot for telemetry and flight data logging

• Compass: Includes external I2C compass for reduced magnetic interference

• Firmware Support: Compatible with ArduPilot (Plane, Copter, Rover)

• Power Supply: Supports external power module input for stable power to flight controller and accessories

• Flight Modes: Stabilize, Alt Hold, Loiter, RTL (Return to Launch), Auto, and more

• Failsafe Functions: Return to Launch (RTL), Low Battery, and Signal Loss handling

• Connectors:

  • GPS port

  • Telemetry port

  • Power module port

  • RC input/output pins

  • I2C port

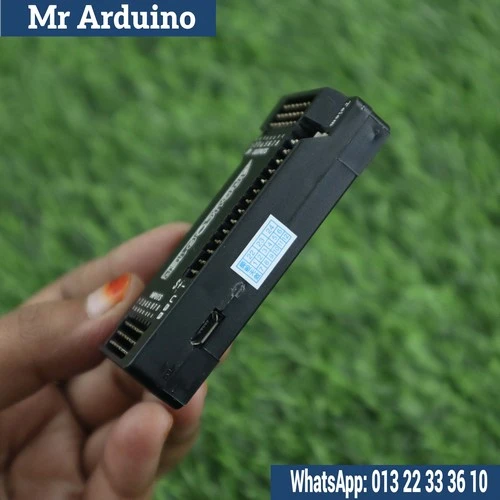

• USB Connectivity: Built-in USB port for firmware upload and configuration

• LED Indicators: Visual feedback for power, activity, and GPS status

• Dimensions: Compact and lightweight for easy drone integration

How It Works:

The APM 2.8 Flight Controller acts as the brain of your drone. It continuously collects sensor data to calculate orientation, altitude, and position. Based on this information—and depending on your selected flight mode—it sends commands to the motors or control surfaces to maintain stable flight or follow programmed waypoints.

Users can configure the APM using Mission Planner or other ground control software. You can upload autonomous missions, monitor live telemetry data, and fine-tune PID settings for perfect stability and performance.

Typical Use Cases:

• Multirotor Drones (Quadcopters, Hexacopters, etc.)

• Fixed-Wing RC Aircraft

• Rovers and Ground Vehicles

• DIY Drone Projects

• Autonomous Navigation & Mapping

• FPV (First Person View) Flights

• STEM Education & Robotics Research

Limitations:

• No Internal Compass: Uses external compass (included) to avoid magnetic interference

• Not Ideal for Advanced Features: Newer flight controllers like Pixhawk offer better performance and more I/O for advanced setups

• Requires Setup: Needs Mission Planner or similar software for initial configuration

• Limited Sensor Fusion: Newer systems have improved IMUs and faster processors for better responsiveness

• No Built-in GPS: GPS module must be added separately for GPS-based features like Loiter or Auto Missions
