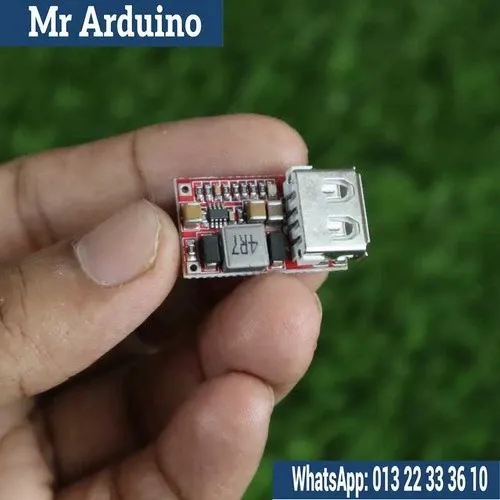

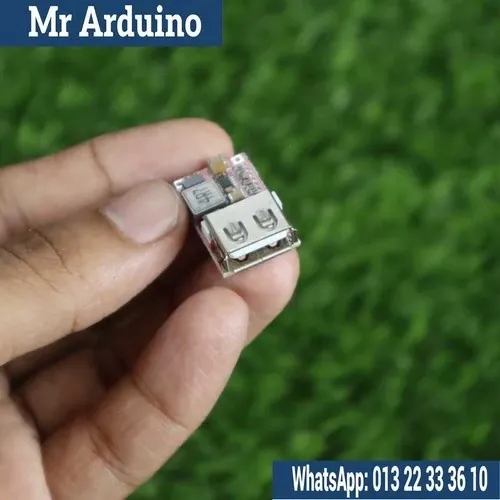

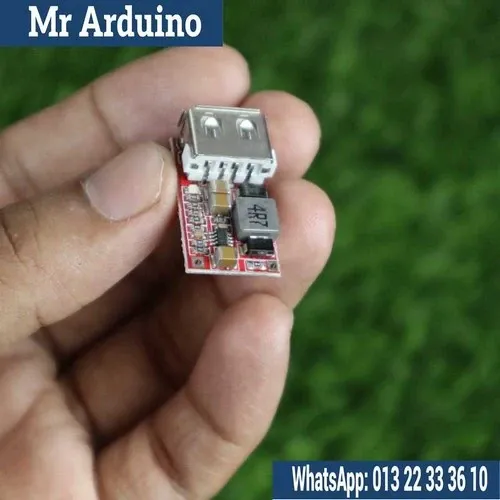

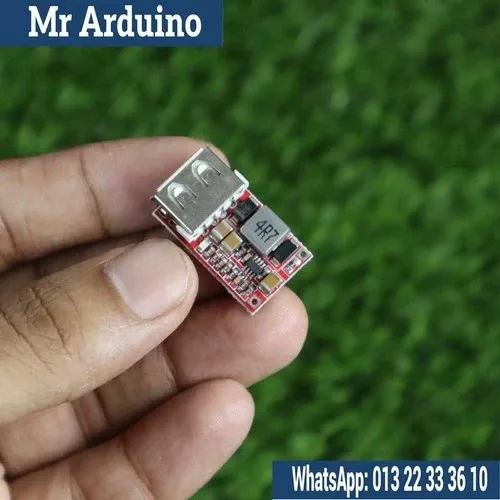

The 5V USB Output Step Down Module is a compact and efficient power converter that steps down higher input voltages to a stable 5V output, which is ideal for powering USB devices. It is typically used when you need to power devices that require a 5V input, such as microcontrollers (like Arduino or Raspberry Pi), sensors, LED strips, or other USB-powered devices, but the available power source is a higher voltage (e.g., 12V or 24V). This module ensures a steady 5V output with high efficiency and can handle a range of input voltages, making it a versatile solution for powering USB devices in various electronics projects.

How It Works: The 5V USB Output Step Down Module works by converting a higher DC voltage (such as 12V, 24V, or other common voltages) to a stable 5V output using a buck converter (step-down voltage regulator). The buck converter reduces the voltage while maintaining high efficiency, which minimizes power loss and reduces heat generation. The output is then routed through the module's USB output, allowing you to easily power USB devices by plugging them into the USB port.

When the input voltage is applied to the module (typically 12V or 24V), the onboard components step it down to a consistent 5V, which is ideal for USB-powered devices. The module usually has protection features like overcurrent protection, short-circuit protection, and thermal shutdown to ensure reliable operation.

Key Features:

1. Step-Down Conversion: Converts higher input voltages (12V, 24V, or other DC voltages) down to a stable 5V output.
2. USB Output Port: Provides a standard 5V USB output, making it convenient for powering USB devices.
3. Efficient Power Conversion: Uses a buck converter to maintain high efficiency, typically greater than 90%, which minimizes power loss and heat.
4. Compact Design: Small and lightweight, making it easy to integrate into electronics projects where space is limited.
5. Overcurrent & Short-Circuit Protection: Includes built-in safety features to protect against damage from excessive current or short circuits.
6. Wide Input Range: Accepts a variety of input voltages (typically 12V, 24V) and efficiently steps them down to 5V for USB-powered devices.
7. Low Heat Generation: Due to its high efficiency, it generates less heat compared to linear regulators.

Specifications:

1. Input Voltage: Typically 12V, 24V, or other DC input voltages (depending on the model)
2. Output Voltage: 5V (USB standard)
3. Output Current: Typically 2A to 3A (depending on the model), sufficient to power most USB devices
4. Output Type: USB-A or USB-C port (depending on the module model)
5. Efficiency: Typically 85% to 95% (depends on the input and load conditions)
6. Operating Temperature Range: -40°C to +85°C (for most models)
7. Size: Compact, usually around 3 to 4 cm in length and width (varies by model)
8. Protection Features: Overcurrent protection, short-circuit protection, thermal shutdown

Limitations:

1. Limited Current Capacity: Although the module can typically output 2A to 3A, it may not be suitable for high-power devices that require more than this amount of current.
2. Input Voltage Range: The module is designed to work with specific input voltages (commonly 12V or 24V). If your input voltage is outside this range, the module may not function correctly.
3. Heat Generation Under Load: While the module is efficient, high current outputs or prolonged use at maximum load may generate heat. Additional cooling might be required for high-demand applications.

The 5V USB Output Step Down Module is an excellent choice for powering USB-powered devices from higher voltage sources, such as batteries, power adapters, or solar panels. It provides a reliable, efficient solution for converting various DC voltages to a stable 5V USB output, making it perfect for DIY electronics projects, robotics, power supplies, or any application where USB power is needed.
