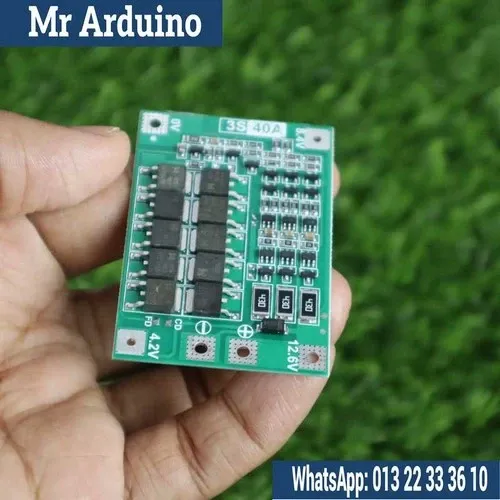

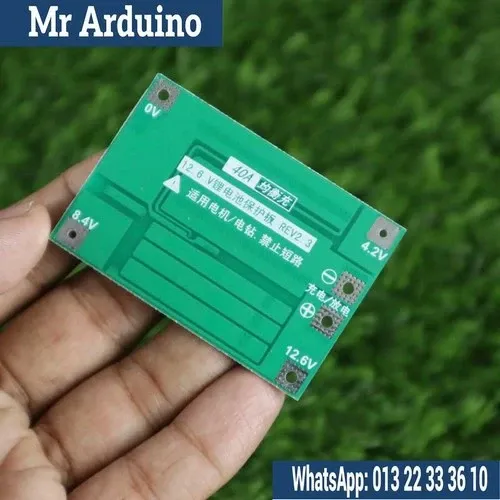

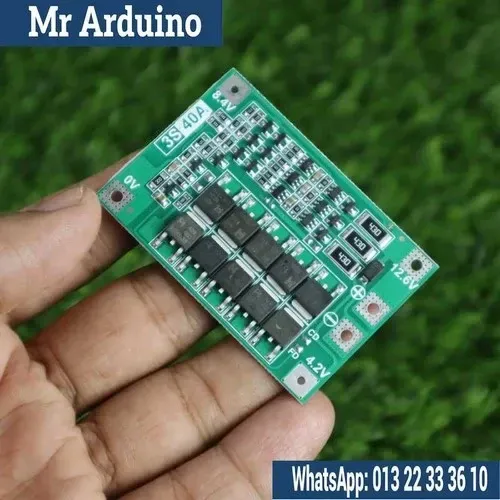

The 3S 40A BMS (Battery Management System) is a protective circuit designed for managing the charging and discharging of 3-cell lithium-ion or lithium-polymer (Li-ion/LiPo) battery packs in a safe and efficient manner. It is specifically built to handle battery packs that are configured in a 3S (3 series) arrangement, providing a 40A continuous current discharge capability. The BMS ensures that the battery pack operates within safe voltage limits, preventing overcharging, over-discharging, overcurrent, and short-circuit situations that could potentially damage the battery or create safety hazards.

How It Works: The 3S 40A BMS monitors and balances the voltage of each individual cell in a 3S battery pack (typically made up of three cells in series). It ensures that the voltage across each cell stays within the safe operating range (usually 3.0V to 4.2V per cell for Li-ion batteries). If the voltage of any cell exceeds the safe limit, the BMS will cut off the charging or discharging process to protect the battery.

Additionally, the BMS controls the charging process, ensuring the battery is charged safely and efficiently. When discharging, the BMS ensures that the battery pack does not discharge below the minimum voltage limit, which could permanently damage the cells. The 40A current rating ensures that the system can handle high-drain applications like motors, power tools, or other energy-intensive devices.

The BMS also provides temperature protection by monitoring the temperature of the battery pack, preventing overheating during charge or discharge cycles.

Key Features:

• 3S Configuration: Designed for 3-cell (3S) lithium-ion or lithium-polymer battery packs.
• 40A Continuous Discharge Current: Can safely handle a continuous discharge current of up to 40A, making it suitable for high-power applications.
• Overcharge Protection: Prevents charging the battery beyond the safe voltage limit (usually 4.2V per cell).
• Overdischarge Protection: Prevents discharging the battery below the minimum voltage (usually 3.0V per cell).
• Overcurrent Protection: Automatically disconnects the load or charging source in case of excessive current to prevent damage.
• Short-Circuit Protection: Safeguards the battery pack from damage due to short circuits.
• Cell Balancing: Ensures that each cell in the battery pack is charged and discharged evenly, enhancing battery life and performance.
• Temperature Protection: Monitors the battery pack’s temperature to prevent overheating and protect against thermal runaway.
• Easy Integration: Can be easily integrated into DIY battery packs for use in electric vehicles, solar power systems, or other high-power applications.
• Compact and Durable Design: Typically small and lightweight, designed for easy integration into battery packs without taking up much space.

Specifications:

• Input Voltage: 12.6V (for a 3S Li-ion/LiPo battery pack)
• Nominal Voltage: 11.1V (for a 3S Li-ion/LiPo battery pack)
• Max Voltage Per Cell: 4.2V (for fully charged cells)
• Min Voltage Per Cell: 3.0V (for safe discharge limit)
• Continuous Discharge Current: 40A
• Peak Discharge Current: Up to 60A (for short periods)
• Charging Current: Typically up to 5A to 10A (depends on the BMS model)
• Balancing Current: 50-100mA (depending on the BMS model)
• Operating Temperature Range: -40°C to +85°C
• Size: Compact (varies depending on design)
• Protection Features: Overcharge, over-discharge, overcurrent, short-circuit, temperature protection, and cell balancing.

Limitations:

• Current Limitation: While the BMS can handle a continuous current of up to 40A, higher current loads (such as motors or power tools requiring more than 40A) will require a BMS with a higher current rating.
• Cell Compatibility: This BMS is designed specifically for 3S Li-ion/LiPo battery packs. It is not compatible with higher or lower voltage configurations (such as 2S, 4S, etc.).
• Charging Rate: The BMS may limit the charging current to ensure the safety of the battery pack, especially with high-capacity packs. Faster charging rates might require specific configurations or more advanced BMS units.

The 3S 40A BMS is an essential component for any high-power lithium battery pack, ensuring safe operation and extending the lifespan of your batteries. It is commonly used in DIY electric vehicle (EV) projects, robotics, solar power storage systems, drones, and other applications that require reliable battery management for 3-cell battery packs.
