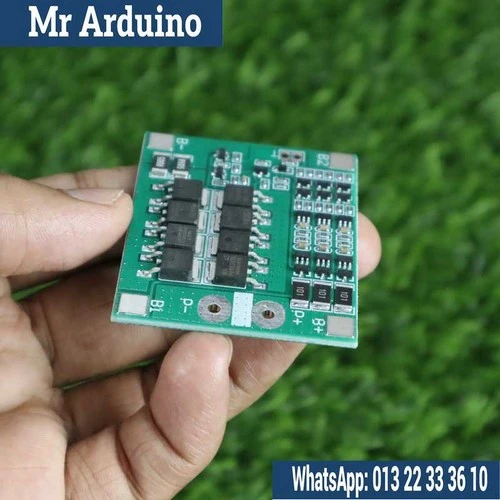

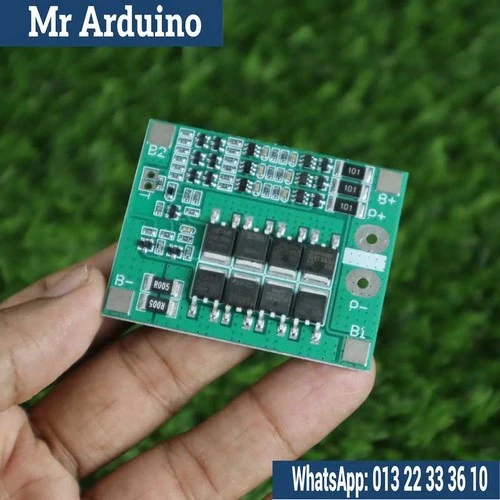

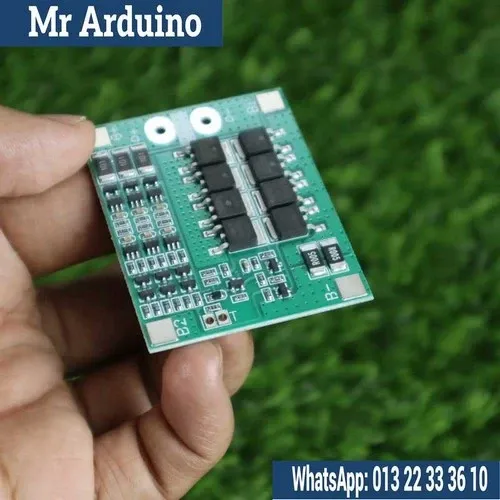

The 3S 25A BMS (Battery Management System) is designed to manage the charging and discharging of a 3-cell lithium-ion (Li-ion) or lithium-polymer (LiPo) battery pack while ensuring the safety and longevity of the battery. This BMS is specifically designed for 3S configurations, meaning it supports 3 series-connected cells, and provides a 25A continuous discharge current, making it suitable for moderate power applications. The BMS ensures that the battery operates within safe voltage and temperature limits, preventing overcharging, overdischarging, short circuits, and excessive current draw that could damage the battery or pose a safety risk.

How It Works: The 3S 25A BMS monitors the voltage of each individual cell in the battery pack. When the battery is charging, it ensures that each cell's voltage does not exceed its safe maximum (usually 4.2V per cell). During discharging, the BMS ensures that no cell drops below the safe minimum voltage (usually 3.0V per cell). The 25A continuous discharge current allows the BMS to safely manage moderate current draws, such as powering mid-range devices or systems, while protecting the cells from harm.

In addition, the BMS includes cell balancing features to ensure that the voltage across each cell in the battery pack remains equalized, preventing uneven charging and discharging. It also protects the pack against overcurrent and short-circuit conditions, and provides temperature monitoring to prevent overheating.

Key Features:

• 3S Configuration: Designed for 3-cell lithium-ion or lithium-polymer batteries connected in series.
• 25A Continuous Discharge Current: Can handle up to 25A of continuous current, ideal for moderate power applications.
• Overcharge Protection: Prevents the voltage from exceeding safe levels (4.2V per cell).
• Overdischarge Protection: Ensures that no cell in the pack discharges below the minimum voltage threshold (typically 3.0V per cell).
• Overcurrent Protection: Automatically disconnects the load or charging source in the event of excessive current.
• Short-Circuit Protection: Cuts off the circuit to avoid damage caused by a short circuit.
• Cell Balancing: Balances the voltage of each cell to maintain even charge levels and enhance battery life.
• Temperature Protection: Monitors the temperature of the battery pack to prevent thermal runaway or overheating.
• Compact and Durable Design: Designed for easy integration into battery packs for a wide range of applications.

Specifications:

• Input Voltage: 12.6V (for a 3S Li-ion/LiPo battery pack)
• Nominal Voltage: 11.1V (for a 3S Li-ion/LiPo battery pack)
• Max Voltage Per Cell: 4.2V (maximum safe charge voltage per cell)
• Min Voltage Per Cell: 3.0V (minimum safe discharge voltage per cell)
• Continuous Discharge Current: 25A
• Peak Discharge Current: Typically up to 40A for short periods (depends on the BMS design)
• Charging Current: Typically up to 5A to 10A, depending on the specific BMS model
• Balancing Current: Typically 50-100mA per cell (depending on the model)
• Operating Temperature Range: -40°C to +85°C (for most models)
• Size: Compact and designed to fit most 3S battery pack configurations
• Protection Features: Overcharge, over-discharge, overcurrent, short-circuit, temperature protection, and cell balancing.

Limitations:

• Current Limitation: This BMS can handle up to 25A continuous current, so it is not suitable for high-power applications that require more than this amount of current, such as large motors or high-drain devices.
• Cell Compatibility: Specifically designed for 3S Li-ion/LiPo configurations; it is not compatible with 2S, 4S, or other configurations.
• Charging Speed: Charging current might be limited by the BMS, and fast-charging applications might require a higher-rated BMS.

The 3S 25A BMS is a vital component for ensuring the safe and efficient operation of 3-cell Li-ion or LiPo battery packs in medium-power applications. It is commonly used in a variety of DIY projects, such as electric vehicles (EVs), robotics, drones, power tools, solar power systems, and other battery-powered systems that require moderate power and reliable protection. This BMS provides robust protection and ensures the longevity and safety of your battery pack.
