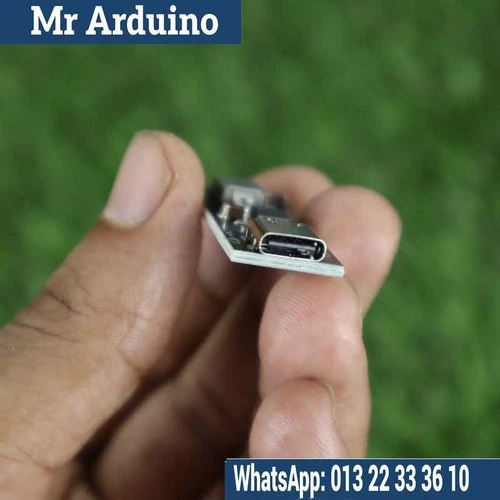

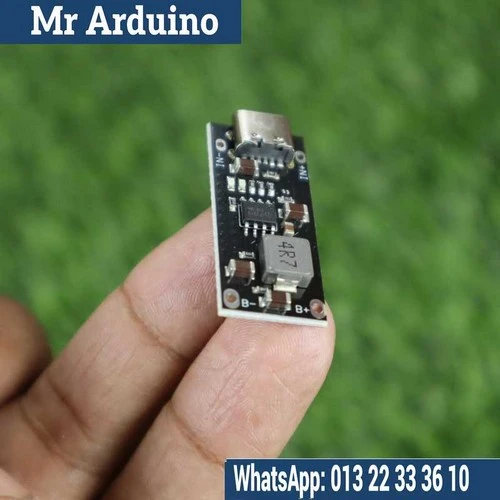

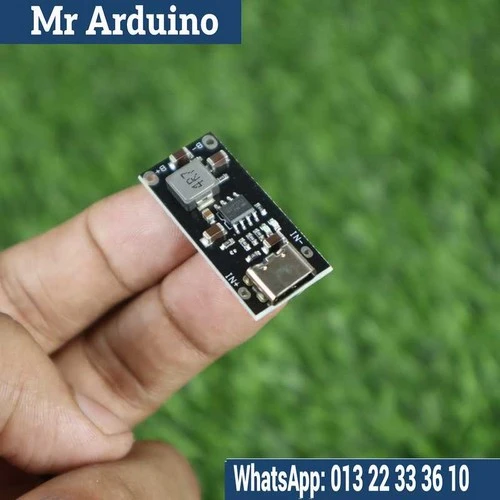

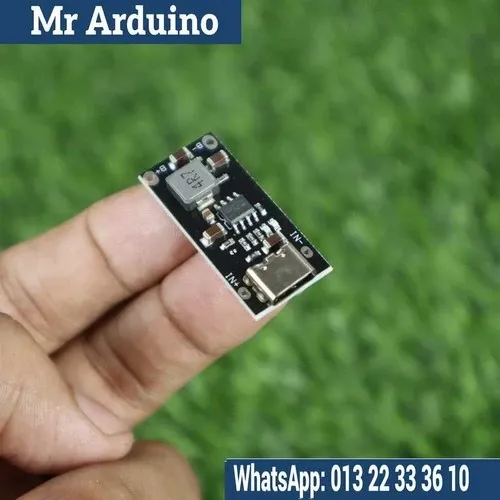

The 3A Fast Charging Module Type-C IP2312 is a compact and efficient power management module designed for fast charging applications. This module is specifically engineered to support Type-C USB connections and provides up to 3A of current, making it ideal for charging devices that support fast charging protocols. The IP2312 chip at the heart of the module offers robust power management, ensuring fast, safe, and reliable charging for a wide variety of devices, including smartphones, tablets, and other USB-powered electronics.

How It Works: The 3A Fast Charging Module Type-C IP2312 works by efficiently managing the power delivered through the USB Type-C connection. When a device is connected, the module ensures that it delivers up to 3A of current for fast charging, providing a significant reduction in charging time compared to standard charging modules.

The IP2312 is a dedicated power delivery (PD) controller that negotiates the optimal voltage and current between the charging source (such as a USB adapter) and the device being charged. This ensures that the connected device receives the most appropriate power for its requirements, reducing the risk of overheating or damage to the battery while maximizing charging efficiency.

The module typically supports input voltages of 5V, with the ability to boost or adjust the voltage for specific devices. It is also equipped with protection circuits to prevent overcharging, overcurrent, and overheating, ensuring the safety of both the charging module and the connected device.

Key Features:

• 3A Fast Charging: Delivers up to 3A of current, allowing for faster charging of devices compared to standard USB chargers.
• USB Type-C Support: Compatible with modern devices that use USB Type-C for charging, providing a reversible and versatile connection.
• IP2312 Power Management Chip: The IP2312 chip ensures efficient power management, offering optimal voltage and current regulation for fast and safe charging.
• Overcurrent and Overvoltage Protection: Built-in protection mechanisms to safeguard against excessive current and voltage, protecting both the charging module and the device.
• Compact Design: The module is small and lightweight, making it easy to integrate into DIY projects, power banks, or charging circuits.
• Wide Application Compatibility: Ideal for charging smartphones, tablets, power banks, and other devices that support Type-C USB charging.
• Thermal Protection: Prevents overheating during high current charging, ensuring safe operation in demanding applications.

Specifications:

• Input Voltage: 5V DC (Type-C input)
• Output Current: Up to 3A (depending on the device being charged)
• Output Voltage: Typically 5V, with potential voltage adjustment based on the device's needs
• Chipset: IP2312 (power delivery controller)
• Protection Features: Overcurrent, overvoltage, and thermal protection
• Interface: USB Type-C (reversible connector)
• Operating Temperature Range: -20°C to +85°C (depending on the module design)
• Size: Compact, easy to integrate into small or portable devices
• Efficiency: High efficiency in converting and delivering power, typically 90% or higher

Limitations:

• Voltage Limitations: The module typically provides 5V output, so it's best suited for devices that can charge at 5V. For devices that require higher voltage levels (e.g., 9V or 12V for fast charging), an additional protocol like QC (Quick Charge) or PD (Power Delivery) may be necessary.
• Device Compatibility: While the module is compatible with most USB Type-C devices, it may not be compatible with older devices using micro USB or proprietary charging ports without an adapter.
• Current Limitation: Although it supports up to 3A of charging current, devices requiring higher current levels may need a higher-rated charging module for optimal performance.

The 3A Fast Charging Module Type-C IP2312 is an excellent solution for quickly charging modern USB Type-C devices, providing a compact, efficient, and safe charging experience. Whether you are building your own power bank, integrating it into a custom circuit, or replacing a slow charger, this module is a great way to ensure fast, reliable charging for your devices.
