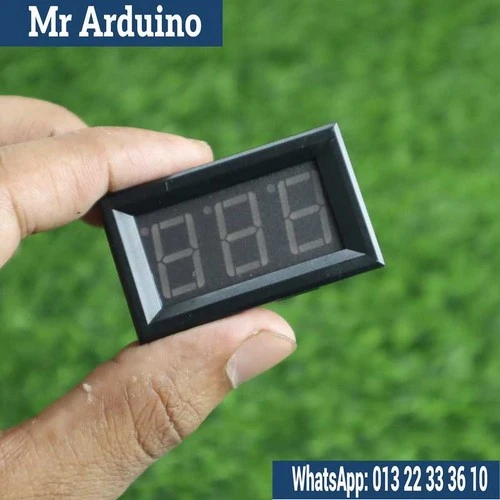

The 0.56 Inch AC Volt Meter is a compact and reliable digital volt meter designed to measure AC (alternating current) voltage. Featuring a 0.56-inch display, this meter is ideal for applications where space is limited and you need a clear, readable output for voltage measurements. It is commonly used in electrical circuits, power supplies, industrial machinery, and DIY electronics projects. The digital display makes it easy to read the voltage of AC circuits in real-time, helping users monitor voltage levels for safe and efficient operation.

How It Works: The 0.56 Inch AC Volt Meter operates by connecting it to an AC power source. It uses an internal sensing circuit to measure the AC voltage and converts this voltage into a digital signal, which is displayed on the 0.56-inch LED screen. The meter typically operates within a specific voltage range (e.g., 80V to 300V AC) and will display the voltage in real-time. Depending on the model, it may display voltage in standard units such as volts (V), and in some cases, it may automatically adjust to different ranges.

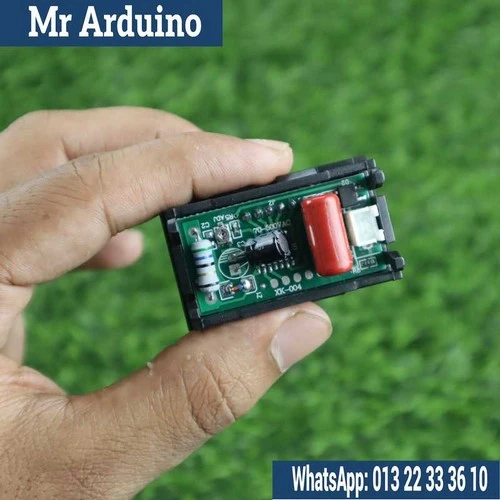

The meter uses a voltage divider or AC signal conditioning circuit to scale the incoming AC voltage down to a level that can be processed by the internal digital circuitry. The 0.56-inch LED display ensures that the voltage is displayed in a clear, readable format, even from a distance.

Key Features:

• Compact 0.56-Inch Display: The small size of the display makes it ideal for use in tight spaces, such as in electrical panels, power supplies, or other compact electronics systems.
• AC Voltage Measurement: Measures alternating current (AC) voltage accurately within the specified range, typically from 80V to 300V AC (depending on the model).
• Easy-to-Read Digital Display: The 0.56-inch LED display is clear and easy to read, making it suitable for a wide range of applications.
• Wide Application: Ideal for monitoring AC voltage in home appliances, power systems, electrical panels, industrial equipment, and DIY electronics projects.
• Low Power Consumption: Efficient design ensures minimal energy consumption, making it suitable for long-term use in monitoring systems.

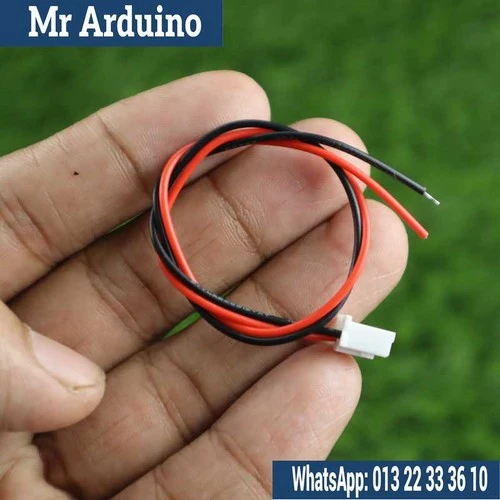

• Easy Integration: Can be easily integrated into various electrical systems or DIY projects due to its compact size and simple wiring connections.
• Affordable and Reliable: Offers a cost-effective solution for accurate AC voltage monitoring without the need for high-end or bulky meters.

Specifications:

• Display: 0.56-inch digital LED display
• Input Voltage Range: Typically 80V to 300V AC (may vary depending on the model)
• Display Format: Voltage displayed in Volts (V)
• Power Supply: Typically powered by the AC input voltage itself or an external low-voltage DC supply
• Measurement Type: AC Voltage
• Accuracy: Typically ±1% or better (depends on the specific meter model)
• Operating Temperature Range: -10°C to +60°C (depends on the model)
• Size: Small and compact, typically around 2-3 cm in length and width
• Current Consumption: Low, typically less than 10mA for continuous operation

Limitations:

• Limited Voltage Range: The voltage range is typically limited to lower voltages, such as 80V to 300V AC. If you need to measure higher voltages, a different meter with a higher voltage rating would be required.
• AC Voltage Only: This meter is designed to measure AC voltage only and is not suitable for measuring DC voltage or other types of signals.
• Display Size: The 0.56-inch display, while compact and clear, may not be large enough for users with visual impairments or those who need to view the reading from a long distance. A larger display may be more suitable for those use cases.

The 0.56 Inch AC Volt Meter is an excellent choice for anyone needing a compact, efficient, and reliable solution for monitoring AC voltage in a wide variety of electrical and DIY applications. It offers accurate voltage readings with minimal power consumption, and its small size makes it perfect for tight spaces or portable systems.
